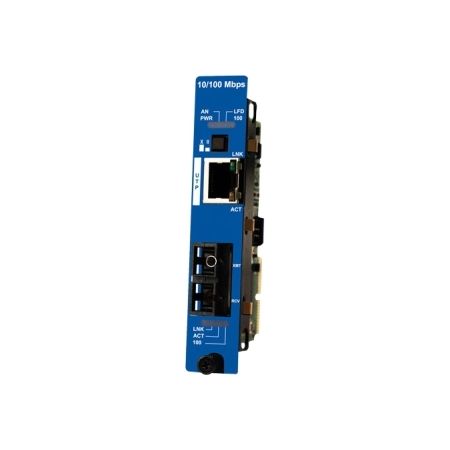

B+B 10/100 mbps Switching Media Converter Item # 708451
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
708451
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The iMcV-LIM 10/100 includes troubleshooting features such as LinkLoss, Transparency and Link Fault Detection that make isolating fiber breaks easier should they occur. The iMcV-LIM 10/100 also features a crossover/pass-through switch on the twisted pair connection for MDI/MDIX connectivity and diagnostic LEDs. Most iMcV-LIM 10/100 modules are available with single-strand fiber which can effectively double the capacity of fiber by allowing two individual channels to share one strand of fiber; Full-Duplex data travels on different wavelengths - 1310 nm and 1550 nm, for example.
Product Details
| Item # | 708451 |
| Manufacturer # | GA5501 |
| Ethernet Technology | Fast Ethernet |
| Product Series | IMcV-LIM |
| height | 4.2 in. |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | FCC Class B; CE |
| thickness | 780 mil |
| width | 2.8 in. |
| Product Name | 10/100 mbps Switching Media Converter |
| manufacturer | B+B SmartWorx |
| Number of SC Ports | 1 |
| Compatibility | B&B Electronics Products:IMC iMediaCenter; IMC iMediaChassis; IMC MediaChassis |
| Maximum Distance Supported | 24.85 Mile |
| brand name | B+B |
| USB | No |
| Digital Audio/Video | No |
| SC Port Type | Duplex |
| Digital Audio | No |
| Network (RJ-45) | Yes |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Total Number of Ports | 2 |
| DVI | No |
| Management Port | No |
| Parallel Port | No |
| Fiber Mode Supported | Single-mode |
| form factor | Internal |
| warranty length | limited lifetime |
| model name | 850-14246 |
| Network Technology | 100Base-FX; 10/100Base-TX |
| Show More ▾ |
